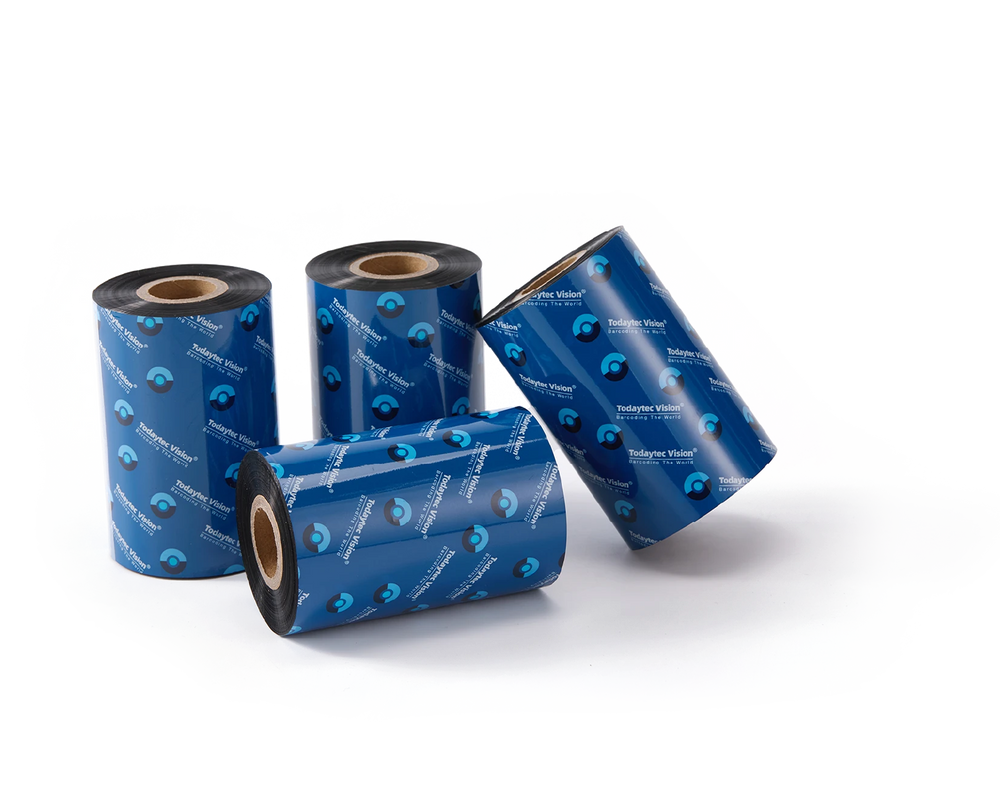

TDM242
High Efficiency General Wax-resin Ribbon
As a cost-effective general wax-resin ribbon, TDM242 can print well on various substrates at low printing temperature. Besides its excellent scratch resistance and high blackness, its small characters and fine lines printings are also impressive.
Contact us for a quote
High DefinitionSuperior Scratch ResistanceSuperior Substrate Compatibility
- Ribbon typeWax/Resin
- Data sheetDownload PDF
| Printing speed | 8 ips (203.2 mm/s) |
|---|---|
| Print temperature | Medium |
Properties
| PET film thickness | 4.5µm |
|---|---|
| Ribbon thickness | 8.2±0.3µm |
| Ink colour | Black |
| Melting point | 80±3°C |
Storage condition
| Temperature | 5–35 °C |
|---|---|
| Humidity | 20–80 % RH |
| Shelf life | 12 months |
Print quality
Darkness (ODR)
0.52.10 ODR2.5
Sharpness
095100
0° barcode
0100100
90° barcode
090100
Min. printable character
04pt6
Graphics
095100
Printability
- Coated paperL1
- Film labelL1
- Synthetic paperL1
- Uncoated paperL2
Suitability grade per the product datasheet: L1 best · L2 suitable · L3 usable · Not rated = the datasheet gives no grade
Durability test
Physical resistance
Slight exposure after approx. 500 cycles under a 680 g load
Rub resistance
0400 cycles1000
Chemical resistance
- Braking Fluid (Bosch Dot4 Plus)
- Gasoline (92#)
- Alcohol (95%)
Water resistance
100°C / 2 hours — no significant fading
Low-temperature test
-17°C / 20 hours — no significant peeling
Compatible printers
Argox - CP-2140Argox - OS-214Argox - X-3200Argox - iX4-250Argox - iX4-350Avery Dennison - 9864Avery Dennison - 9906Avery Dennison - Monarch 9416Citizen - CL-S521Citizen - CL-S621Citizen - CL-S631Citizen - CL-S6621
Certifications
Certifications for this product
-
ISO 9001 / 14001
Certified
- RoHS 2.0 Certified
-
REACH
Certified
-
MSDS / SDS
Certified
-
Halogen free
Certified
-
UL
Not certified
Certification status for this ribbon, per the Todaytec technical documentation. Standards that are not listed have not been assessed for this product.
