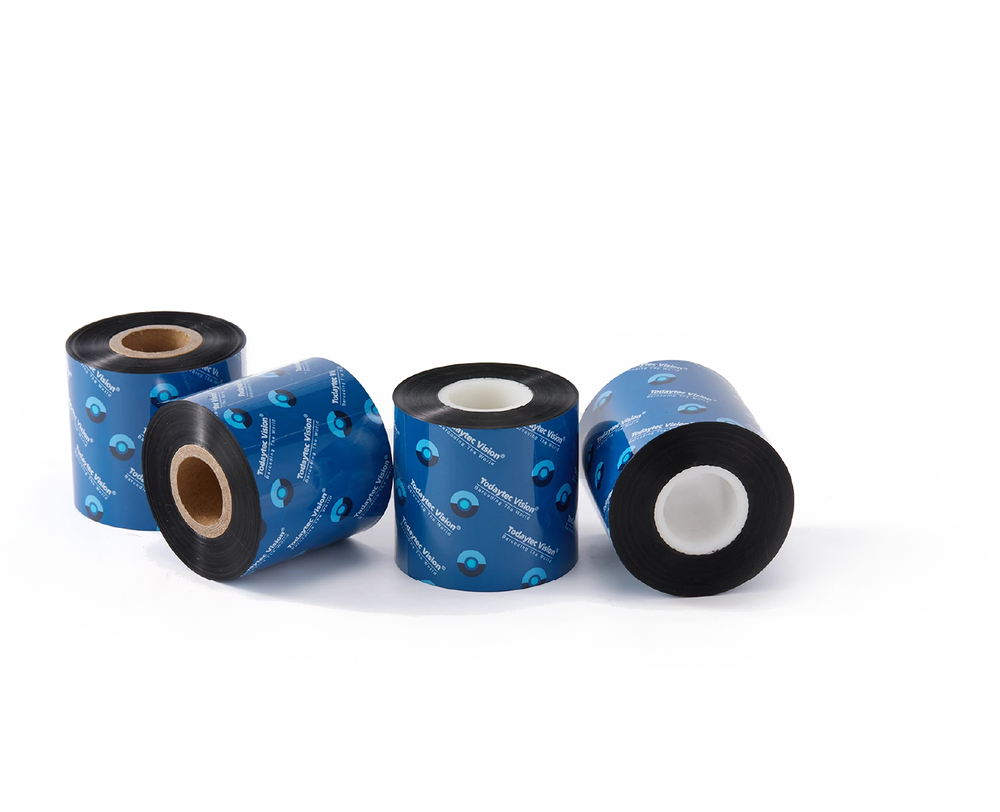

TDM200
Economical Practical Wax-resin Ribbon
TDM200, as an economical wax-resin ribbon, has been widely used for its enhanced scratch resistance and superior printing quality on a variety of substrates. Its low printing energy consumption can protect the printer's print heads and effectively extend the service life of the print heads.
Contact us for a quote
High SensitivityEnhanced Scratch ResistanceEnhanced Detail
- Ribbon typeWax/Resin
- Data sheetDownload PDF
| Printing speed | 8 ips (203.2 mm/s) |
|---|---|
| Print temperature | Low |
Properties
| PET film thickness | 4.5µm |
|---|---|
| Ribbon thickness | 8.4±0.3µm |
| Ink colour | Black |
| Melting point | 73±3°C |
Storage condition
| Temperature | 5–35 °C |
|---|---|
| Humidity | 20–80 % RH |
| Shelf life | 12 months |
Print quality
Darkness (ODR)
0.52.13 ODR2.5
Sharpness
085100
0° barcode
0100100
90° barcode
075100
Min. printable character
04pt6
Graphics
095100
Printability
- Coated paperL1
- Film labelL2
- Synthetic paperL2
- Uncoated paperL3
Suitability grade per the product datasheet: L1 best · L2 suitable · L3 usable · Not rated = the datasheet gives no grade
Durability test
Physical resistance
Slight exposure after approx. 210 cycles under a 680 g load
Rub resistance
0130 cycles1000
Chemical resistance
- Braking Fluid (Bosch Dot4 Plus)
- Gasoline (92#)
- Alcohol (95%)
Water resistance
100°C / 2 hours — no significant fading
Low-temperature test
-17°C / 20 hours — no significant peeling
Compatible printers
Argox - CP-2140Argox - OS-214Argox - X-3200Argox - iX4-250Argox - iX4-350Avery Dennison - 9864Avery Dennison - 9906Avery Dennison - Monarch 9416Citizen - CL-S521Citizen - CL-S621Citizen - CL-S631Citizen - CL-S6621
Certifications
Certifications for this product
-
ISO 9001 / 14001
Certified
- RoHS 2.0 Certified
-
REACH
Certified
-
MSDS / SDS
Certified
-
Halogen free
Certified
-
UL
Not certified
Certification status for this ribbon, per the Todaytec technical documentation. Standards that are not listed have not been assessed for this product.
