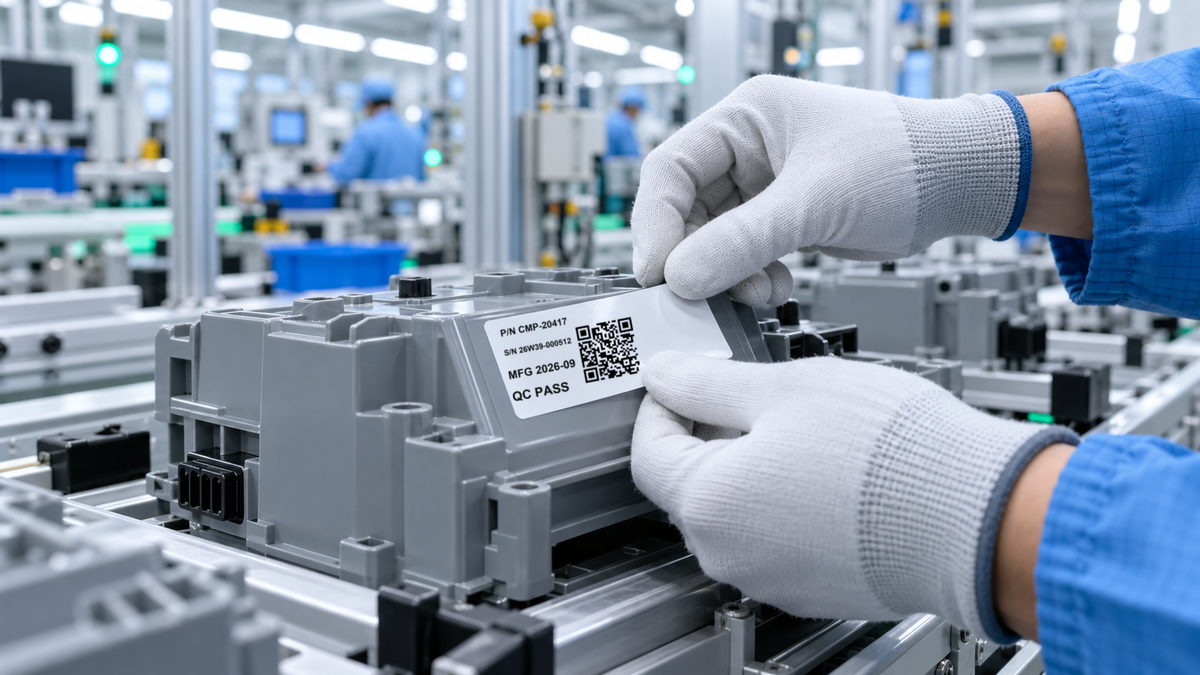

Manufacturing labels: keep barcodes and QR codes readable through the process
Industrial identification is a system: a label face stock, ribbon, printer, adhesive and work process. A sharp code on day one can fail later if the label is rubbed, cleaned or placed near heat. Define the exposure before selecting a ribbon.
Start with the label's job
A temporary work-in-process label, such as a component or PCB identifier, may only need to last through one production stage. A machinery or equipment nameplate may need to remain readable for years. Record label substrate, code size, intended scan distance, exposure and replacement policy. This avoids paying for a durable grade where it is unnecessary, or choosing a low-cost grade that fails in service.
Print detail and durability are separate checks
Use an actual barcode or QR code with the smallest planned module size and text. Test at production speed, then scan with the device operators use. Next, expose samples to the specific rubbing, cleaning agent or handling expected in the process. Avoid calling a ribbon "scratch-proof" or "static-proof"; performance depends on the complete combination and test conditions.
Todaytec's manufacturing collection lists several wax/resin and resin grades for different uses. For component and PCB labels on silver or white PET, Todaytec recommends resin ribbons such as TDR345 or TDR325. For labels on PE packaging bags, it pairs coated paper or white PP with wax/resin TDM238 or T209. Carton and pallet labels usually need only wax or wax/resin such as TDW121, TDW136 or TDM240P. No one SKU covers every machine, metal plate or film.
A useful qualification record
Keep a sample with printer model, label stock, ribbon SKU, speed/darkness, date and test results. Record barcode verification or at least repeated scanner results before and after exposure. For high-value traceability, agree acceptance limits with the customer's quality team before rollout.
Classify labels by process stage
Do not write one ribbon specification for every label in a factory. Incoming-material labels, work-in-process tags, finished-goods labels and equipment nameplates serve different purposes. An incoming label might be removed after inspection. A work-in-process code can be scanned at several stations and may face oils or handling. A finished-goods label must survive packing and distribution. A nameplate can have a much longer service life. For each class, define its minimum readable life and the step where a failed scan would stop work or break traceability.
Map who prints the label, who applies it and when it is scanned. A label applied to a rough casting, a curved housing or a smooth plastic tray may need different face stock and adhesive even when the code artwork is identical. The label supplier should confirm those materials. Thermal transfer ribbon selection then focuses on producing a readable image on the chosen face stock throughout the relevant process.
Build a realistic print-and-scan trial
Use production artwork with the actual data length. QR codes become denser as data is added, so a demonstration with only a short placeholder may be misleading. Include the smallest text and barcode expected from the real template. Print at line speed and check the initial image for missing strokes, merged bars, voids and background noise. Scan with the installed devices at the expected distance and angle. Record printer resolution, speed and darkness so the result can be reproduced.
Next, follow the label through the stages that matter: handling, wiping, contact with a process liquid or a temperature cycle if these are part of the job. Expose only to conditions the label is intended to meet. Keep an unexposed sample for comparison. After each step, inspect the print, scan it again and record whether the label itself remains attached. Separating image failure from adhesive failure avoids replacing the ribbon for the wrong reason.
Decide when wax/resin or resin is justified
Wax/resin can be a useful trial on some coated papers and synthetics when repeated handling is expected. Resin can be considered on compatible films and more demanding service labels. Neither family guarantees resistance to every cleaner, chemical or temperature. The supplier's application list is a way to shortlist grades; the production label and exposure test are the decision. If a cheaper grade passes the agreed test, there is no reason to describe a more expensive one as mandatory.
When comparing candidates, change only the ribbon first. Keep label stock, artwork, printer and exposure method constant. If none pass, revisit the entire label construction and code size. Increasing print darkness indefinitely can reduce edge definition or burden the printhead; use settings recommended for the chosen printer and confirm by test.
Make qualification repeatable
Create a one-page record for each approved combination. Include a photograph of the label, substrate and adhesive reference, ribbon SKU and lot, printer model, firmware or key settings, barcode data format, scanner model, exposure method, acceptance criterion and approver. Keep before-and-after samples. Link the record to the production bill of materials or purchasing specification so substitutions are visible.
Requalification is appropriate when the face stock, adhesive, ribbon grade, printer, artwork or cleaning process changes. The same applies when a customer changes the code format or minimum module size. A concise change rule gives purchasing flexibility while protecting traceability. It also helps operators troubleshoot: they can compare a failed label with a known approved sample instead of guessing which supply changed.
Frequently asked questions
Print output is missing, blurry, or scratches off easily? Check whether the ribbon type suits the label material, and whether the printhead temperature is set correctly for that ribbon and printer combination.
Need to print barcodes, part names or batch codes on PE packaging bags? Todaytec pairs coated paper labels with wax/resin ribbons TDM238 or T209 for this application.
Carton and pallet labels print well but scratch off during handling? This usually points to ribbon adhesion. TDW121, TDW136 or TDM240P are Todaytec's suggestion for cartons and pallets — fast printing at a reasonable cost.
Do Zebra or Godex printer users need special ribbons? No. Thermal transfer ribbons work with Zebra, TSC and Godex printers as long as the ribbon type matches the label material.
Next: Review Todaytec's manufacturing collection and our ribbon selection guide for the wax, wax/resin and resin comparison.
