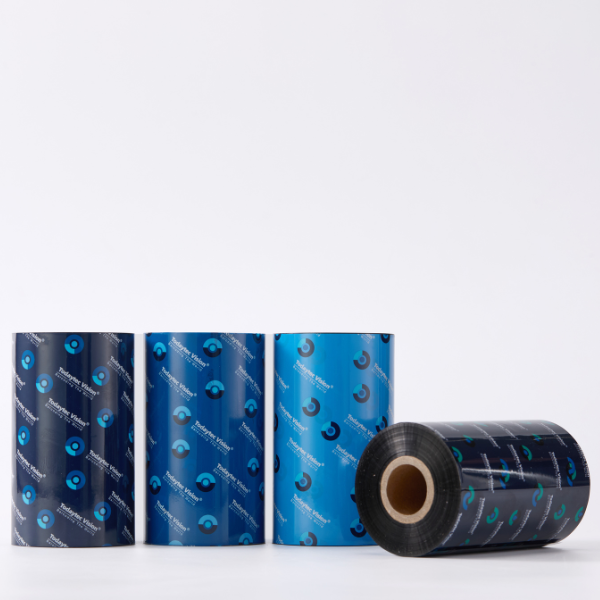

TDW132
Premium Wax Ribbon
TDW132, as a high-performance premium wax ribbon, boasts excellent scratch resistance, outstanding printability, and superior print quality. It finds extensive application across various industries and has earned widespread acclaim from users in diverse sectors.
Contact us for a quote
High DefinitionHigh SensitivityEnhanced Scratch ResistanceSuperior Substrate Compatibility
- Ribbon typeWax
- Data sheetDownload PDF
| Printing speed | 8 ips (203.2 mm/s) |
|---|---|
| Print temperature | Low |
Properties
| PET film thickness | 4.5µm |
|---|---|
| Ribbon thickness | 8.1±0.3µm |
| Ink colour | Black |
| Melting point | 70±3°C |
Storage condition
| Temperature | 5–35 °C |
|---|---|
| Humidity | 20–80 % RH |
| Shelf life | 12 months |
Print quality
Darkness (ODR)
0.52.20 ODR2.5
Sharpness
085100
0° barcode
0100100
90° barcode
070100
Min. printable character
04pt6
Graphics
090100
Printability
- Coated paperL1
- Film labelL1
- Synthetic paperL1
- Uncoated paperL3
Suitability grade per the product datasheet: L1 best · L2 suitable · L3 usable · Not rated = the datasheet gives no grade
Durability test
Physical resistance
Slight exposure after approx. 150 cycles under a 680 g load
Rub resistance
090 cycles1000
Chemical resistance
- Braking Fluid (Bosch Dot4 Plus)
- Gasoline (92#)
- Alcohol (95%)
Water resistance
100°C / 2 hours — no significant fading
Low-temperature test
-17°C / 20 hours — no significant peeling
Compatible printers
Argox - CP-2140Argox - OS-214Argox - X-3200Argox - iX4-250Argox - iX4-350Avery Dennison - 9864Avery Dennison - 9906Avery Dennison - Monarch 9416Citizen - CL-S521Citizen - CL-S621Citizen - CL-S631Citizen - CL-S6621
Certifications
Certifications for this product
-
ISO 9001 / 14001
Certified
- RoHS 2.0 Certified
-
REACH
Certified
-
MSDS / SDS
Certified
-
Halogen free
Certified
-
UL
Not certified
Certification status for this ribbon, per the Todaytec technical documentation. Standards that are not listed have not been assessed for this product.
