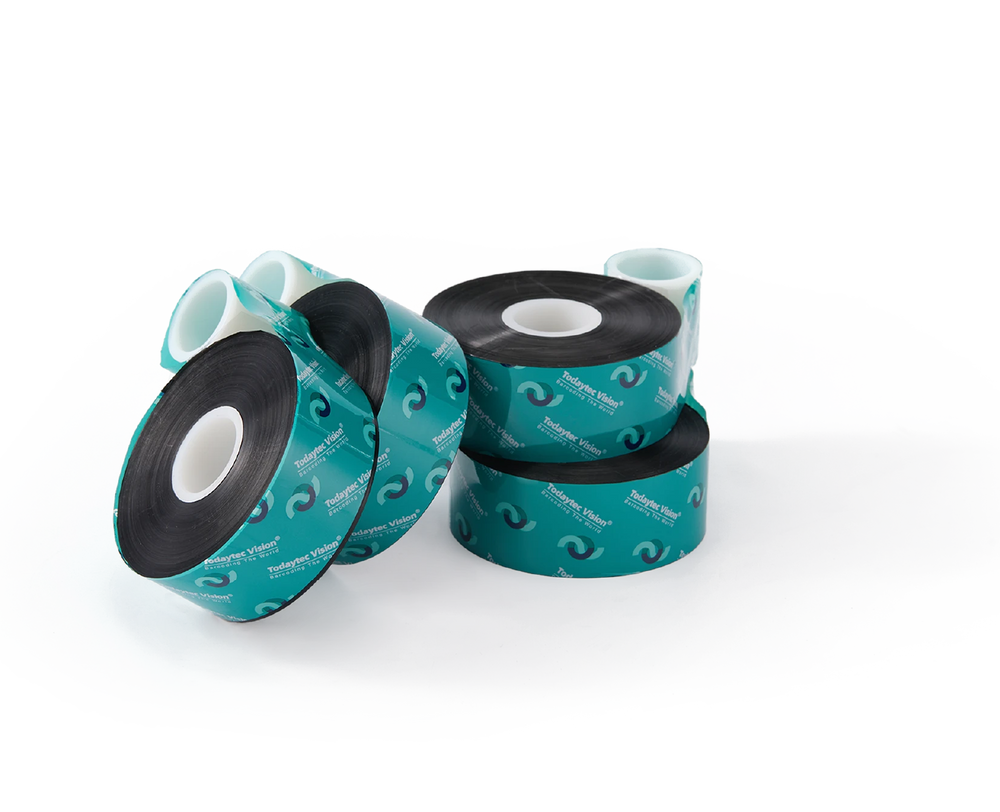

TDR342
Near-Edge / TTO Resin Ribbon
TDR342 is a TTO/near-edge resin ribbon offering excellent durability and print quality. It transfers reliably onto various film substrates including PE, PP, PET, and BOPP, making it widely applicable in packaging production lines for food, household & personal care products, and medical devices.
Contact us for a quote
Superior Substrate CompatibilityExcellent Print PerformanceExcellent Scratch ResistanceHigh Speed Printing
- Ribbon typeNear Edge/TTO
- Data sheetDownload PDF
| Printing speed | 14 ips (355.6 mm/s) |
|---|---|
| Print temperature | Medium |
Properties
| PET film thickness | 4.5±0.1µm |
|---|---|
| Ribbon thickness | 6.5±0.5µm |
| Ink colour | Black |
| Melting point | 88±3°C |
Storage condition
| Temperature | 5–35 °C |
|---|---|
| Humidity | 20–80 % RH |
| Shelf life | 12 months |
Print quality
Darkness (ODR)
0.51.65 ODR2.5
Sharpness
095100
0° barcode
0100100
90° barcode
088100
Min. printable character
04pt6
Graphics
096100
Printability
- Coated paperL3
- Film labelL1
- Synthetic paperL1
- Uncoated paperNot rated
Suitability grade per the product datasheet: L1 best · L2 suitable · L3 usable · Not rated = the datasheet gives no grade
Durability test
Physical resistance
Slight exposure after approx. 400 cycles under a 680 g load
Rub resistance
0480 cycles1000
Water resistance
100°C / 2 hours — no significant fading
Low-temperature test
-17°C / 20 hours — no significant peeling
Certifications
Certifications for this product
-
ISO 9001 / 14001
Certified
- RoHS 2.0 Certified
-
REACH
Certified
-
MSDS / SDS
Certified
-
Halogen free
Certified
-
UL
Not certified
Certification status for this ribbon, per the Todaytec technical documentation. Standards that are not listed have not been assessed for this product.
